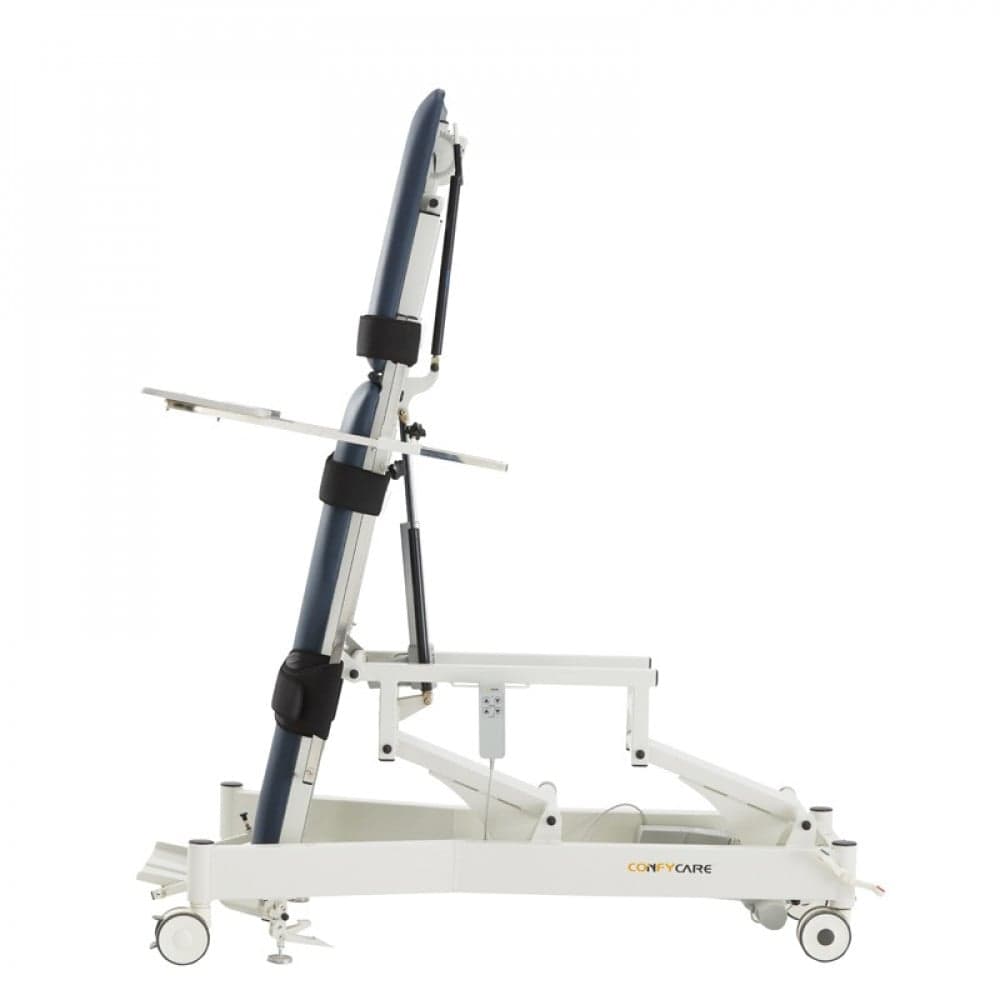

Electric Tilt Table EL12
The EL12 is an electric-powered tilt and standing table for rehabilitation settings and home care. It is designed to assist patients who have difficulty standing or who present with neurological or cardiovascular conditions, enabling a gradual and safe transition from full supine to upright under controlled conditions.
Key features
- Quiet electric actuator for smooth tilt adjustment with precise positioning from 0° to 90°, minimizing vibration.
- Integrated safety with three wide, padded fixation belts for the chest, pelvis/waist, and knees to help maintain patient stability during elevation.
- Adjustable foot platform: robust padded metal footrest supporting the patient’s weight and providing angular stability of the lower limbs in standing.
- Wired hand-held remote for simple control, allowing tilt adjustments and stopping at any angle.
- Medical-grade padding and braked casters: high-density foam surface with soft synthetic leather cover suitable for routine disinfection; sturdy casters with a central braking system to secure the table during sessions.
Technical specifications
- Tilt/raising angle: electrically adjustable from 0° to 180° (as specified).
- Restraint system: three safety straps (chest, pelvis, knees).
- Control: wired hand remote.
- Frame: treated steel construction with locking casters.
- Upholstery: soft medical-grade synthetic leather, liquid-resistant and easy to disinfect.
Clinical applications
Used as part of rehabilitation programs for:
- Hemiplegia and quadriplegia: to stimulate circulation and train tolerance to upright posture.
- Spinal cord and brain injuries: to help prevent joint stiffness and muscle tightness.
- Prolonged coma or extended inactivity: to help prevent osteoporosis and pressure ulcers, and to support respiratory and urinary function.
- Orthostatic hypotension: to retrain circulatory adaptation to positional change.
