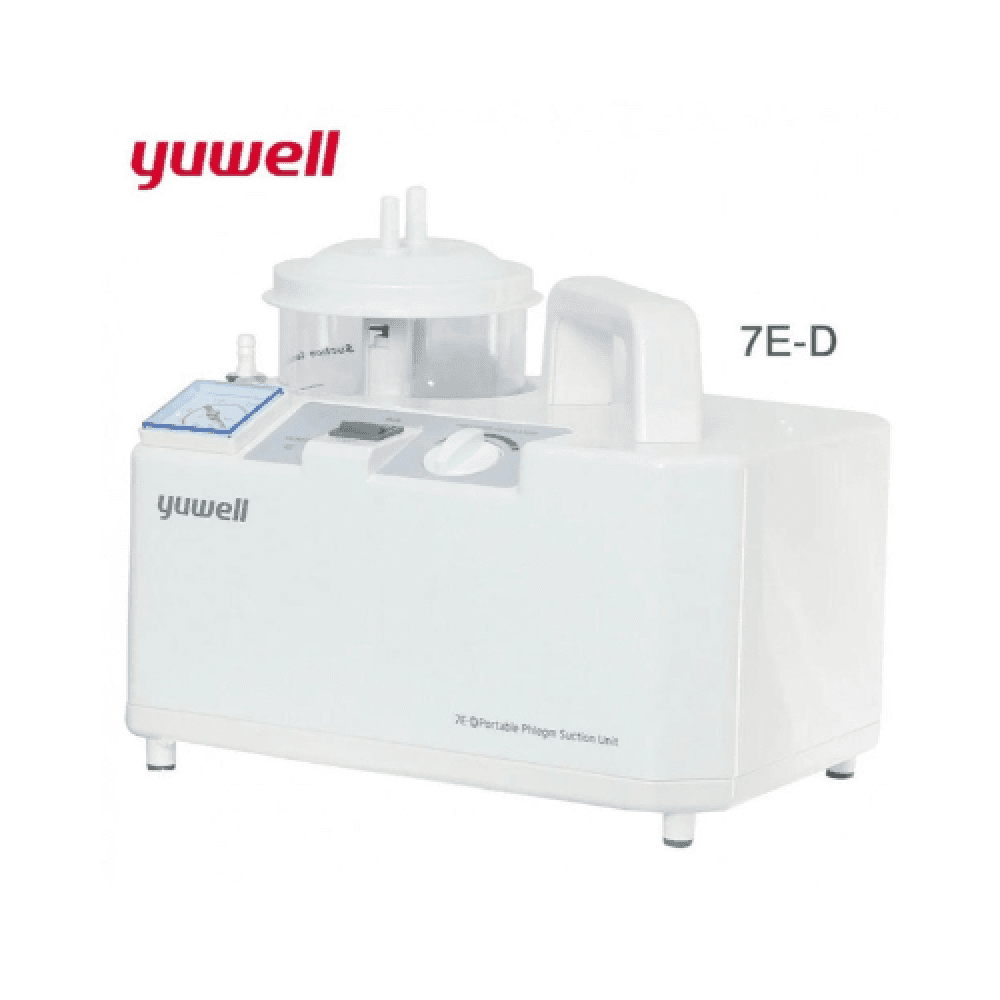

Medical Suction Machine 7E-D, Portable

Overview

The Yuwell 7E-D is a portable medical suction unit designed for airway suction of sputum and for draining pus/exudate from infections and wounds. It operates from mains power or an included rechargeable battery, and is suitable for adult and pediatric use. The device features an oil‑free, maintenance‑free pump, a front vacuum gauge with an adjustable regulator, and a 1000 ml collection bottle with overflow protection. A tubing set and bacterial filters are included. The lightweight plastic housing and carry handle support easy transport, with low-noise operation.

Features

• Portable design with carry handle and lightweight plastic housing
• Oil-free, maintenance-free suction pump
• Front-panel vacuum gauge and adjustable suction regulator
• 1000 ml collection bottle with advanced overflow protection

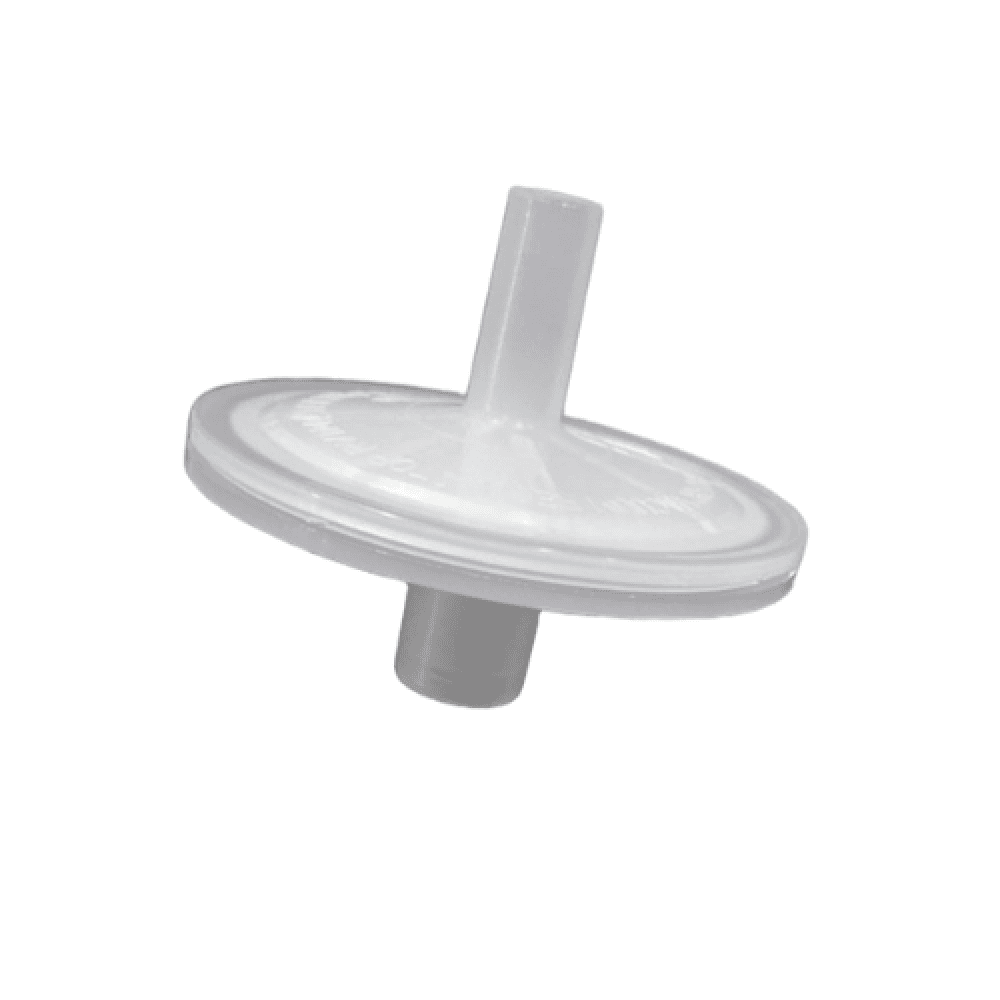

• Includes tubing set and bacterial filters
• Operates on AC power or the included rechargeable battery
• Low-noise operation

Performance

• Suction flow rate: 17 L/min
• Pumping rate: 17 L/min (7A); 15 L/min (7E-B / 7E-D)
• Maximum negative pressure: 0.075 MPa

Technical specifications

• Power input: 90 VA
• Power supply: DC 12 V; 44 VA
• Operating noise: ≥ 65 dB(A)
• Reservoir: 1000 ml (one piece)
• Dimensions: 28 × 19.6 × 28.5 cm
• Weight: 4.4 kg
• Country of manufacture: China

Intended use

• Removal of sputum from the respiratory tract
• Drainage of pus and exudate from infections and wounds
• Use with adults and children
